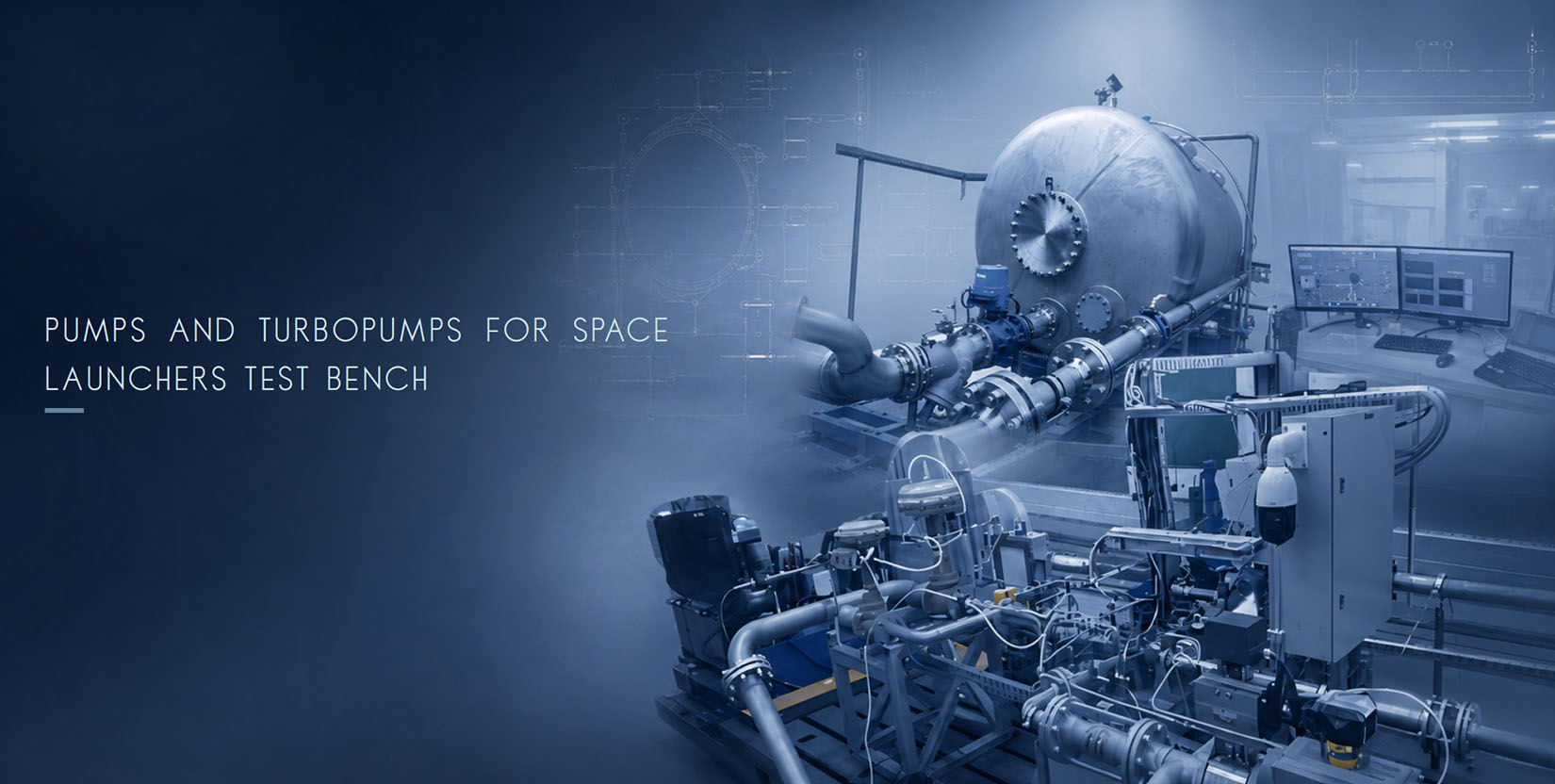

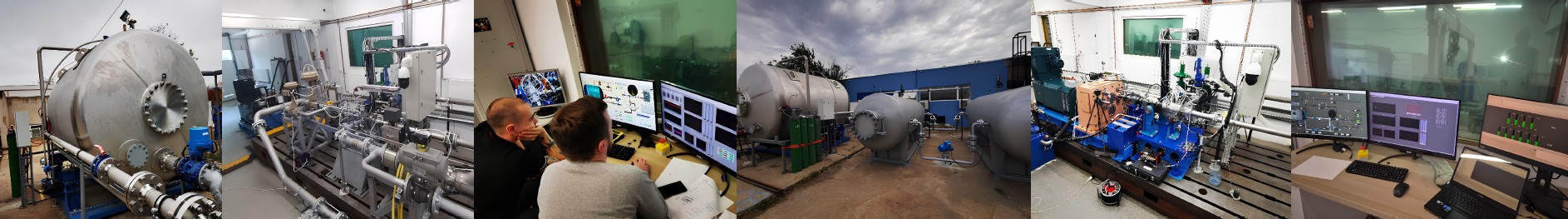

PUMPS AND TURBOPUMPS FOR SPACE LAUNCHERS TEST BENCH
The facility was designed, executed and commissioned by COMOTI, for testing pumps and turbopumps under VEGA-E space launchers program. Successfully tested liquid oxygen turbopump (by similitude with GN2) and pump (electrical motor + gearbox - similitude with water) supplied by AVIO.
|
Turbopump testing (GN2 + water lines) |
Water line + Gas Nitrogen GN2 line working together (specifications below) Dynamic control system for steady GN2 regimes pressure/flow - PID based control system Automated fast valve adjustment system for multiple regimes during the same test |
|
|---|---|---|
|
Pump Separate Testing (Water line) |
Mechanical Drive: 600 kW, 25000 RPM - 200 Nm / 10000 RPM - 500 Nm Electrical motor CC - 600 kW, variable speed, max. 1736 RPM Gearbox: 2 separated shafts - ratios 14.40 or 5.76 |
|
|
Water line: Pump Inlet: Max DN100, max 8 bar (cavitation available - vacuum 0.35 bara) Pump Outlet: Max DN80, max 90 bar Two parallel adjustable globe valves at outlet - for fine flow adjustments Torque measurement on HiSpeed shaft (25000rpm) |
Flowmeters: in line 2 Coriolis Type + 1 Diaphragm type Additional dynamic inlet/outlet pressure sensors (16000 Hz) Water tank: 20 m3 Softening water installation and anti freeze heating system Additional oiling system for pump rig if required. |
|
|
Turbine Separate Testing (GN2 line) |
Gas Nitrogen (GN2) line: GN2 produced on site: Purity 99.8%, dehumidified, dry Storage in 2 tanks 80 bar, total 14000 liters, heaters available - max 80 °C Inlet: Max DN80, max 55 bar Outlet: Max DN80, max 55 bar |
Flowmeters: in line 1 Coriolis Type + 1 Diaphragm type Two parallel adjustable globe valves at outlet - for fine flow adjustments Separated GN2 circuit for DSP barrier line Brake: electrical motor cc 600 kW + gearbox Dynamic control for steady GN2 regimes pressure/flow - PID control system |
