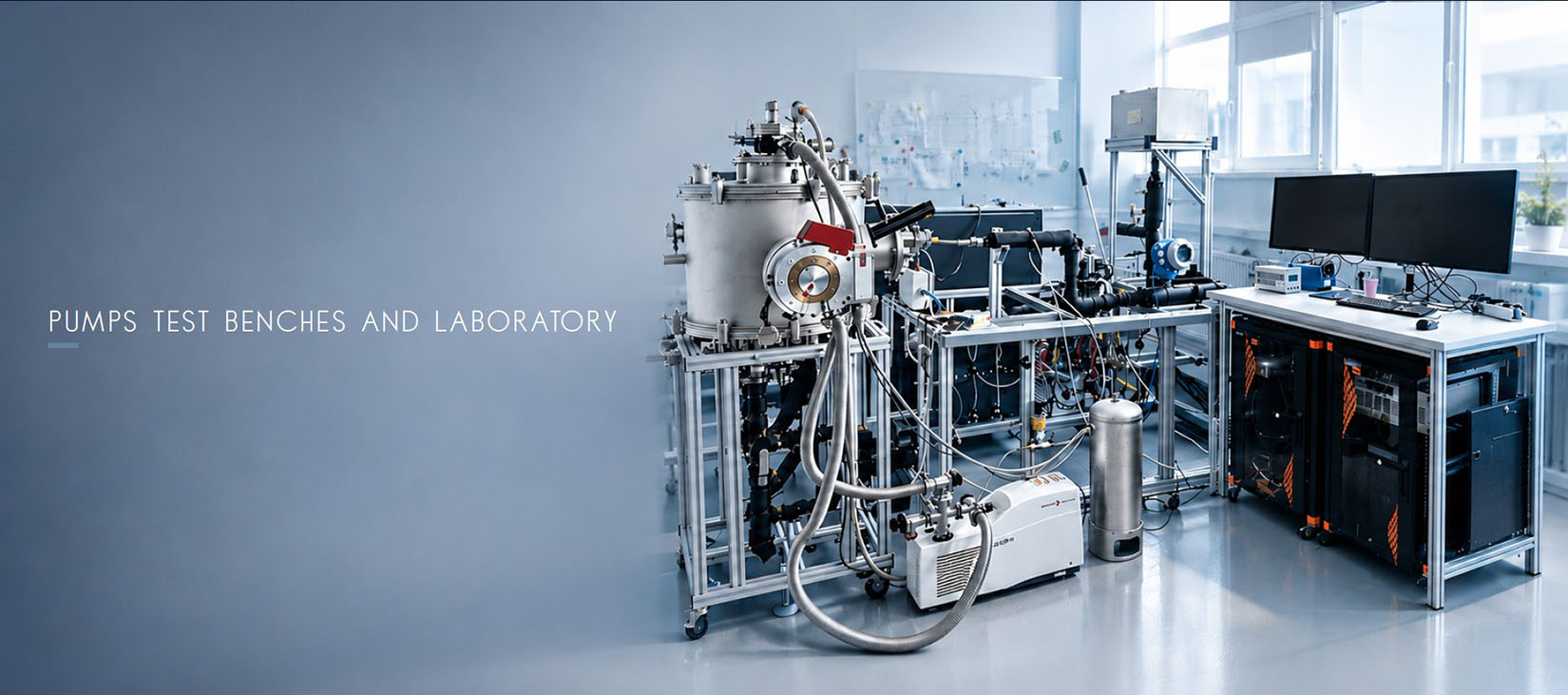

The Pump Test Bench and Laboratory facilities support the functional and performance validation of space pump assemblies. A dedicated Pump Hydraulic Test Bench is currently operational for Engineering Models testing of HFE pumps, enabling controlled performance evaluation and system verification. In parallel, a dedicated Ammonia Pump Test Bench is under development and is expected to become operational by the end of September this year. The laboratory infrastructure is designed to support future qualification activities, experimental campaigns

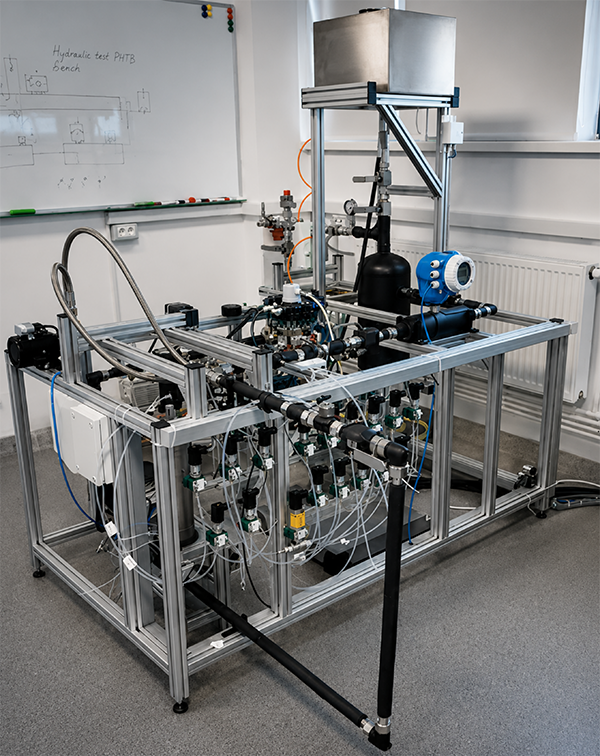

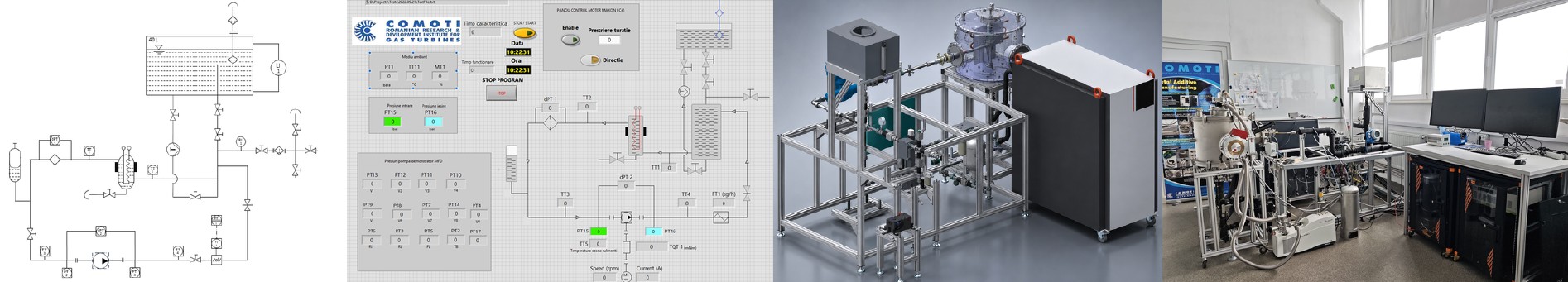

PUMP HYDRAULIC TEST BENCH
The Pump Hydraulic Test Bench (PHTB) is designed for the functional and performance testing of HFE Pumps under controlled operating conditions. The facility supports Engineering Model validation and can be integrated with the Small Thermal Vacuum Chamber to enable combined thermal vacuum and hydraulic performance testing for small and medium-sized space equipment and components.
| Parameter | Specification |
|---|---|
| Pressure Measurement | Differential and relative pressure transducers with accuracy up to 0.05% |
| Pressure Range | Up to 16 bar differential pressure measurement |
| Temperature Measurement | Monitoring range from -50 °C to +120 °C |
| Temperature Accuracy | ±0.15 °C + (0.002 × |t|) |
| Flow Measurement | Coriolis flowmeter with flow rates up to 6500 kg/h |
| Flow Accuracy | 0.10% |
| Hydraulic Circuit | Stainless-steel piping, filters, accumulators, and metering valves |
| Temperature Control | Dedicated heating and cooling system for fluid conditioning |
| Storage Capacity | 40 L pressurization tank and 5 L temperature-controlled tank |

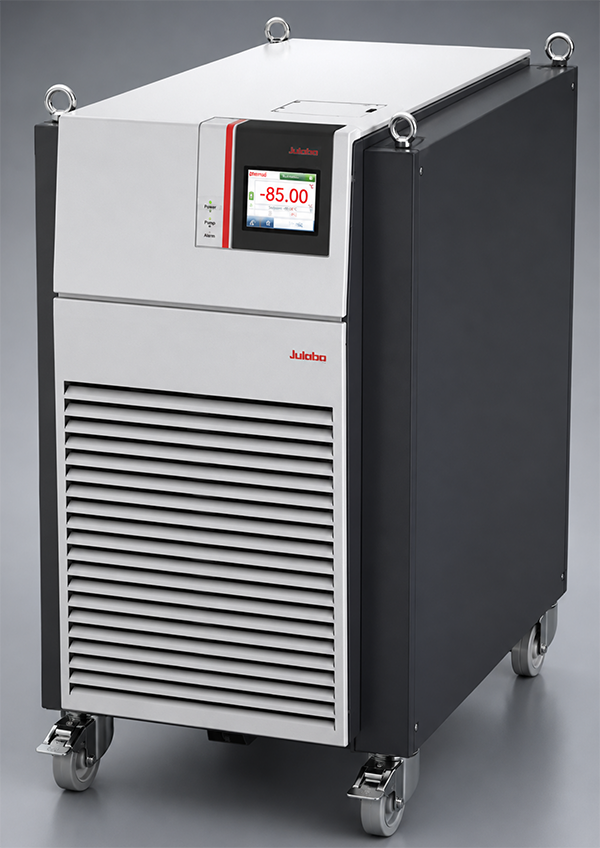

JULABO UNIT
| Model | Julabo Presto A85 |
|---|---|
| Working temperature range | -85 ... +250 °C |
| Temperature stability | ±0.05 ... ±0.1 °C |
| Heating capacity | 6 kW |
| Cooling capacity | 2.8 kW |

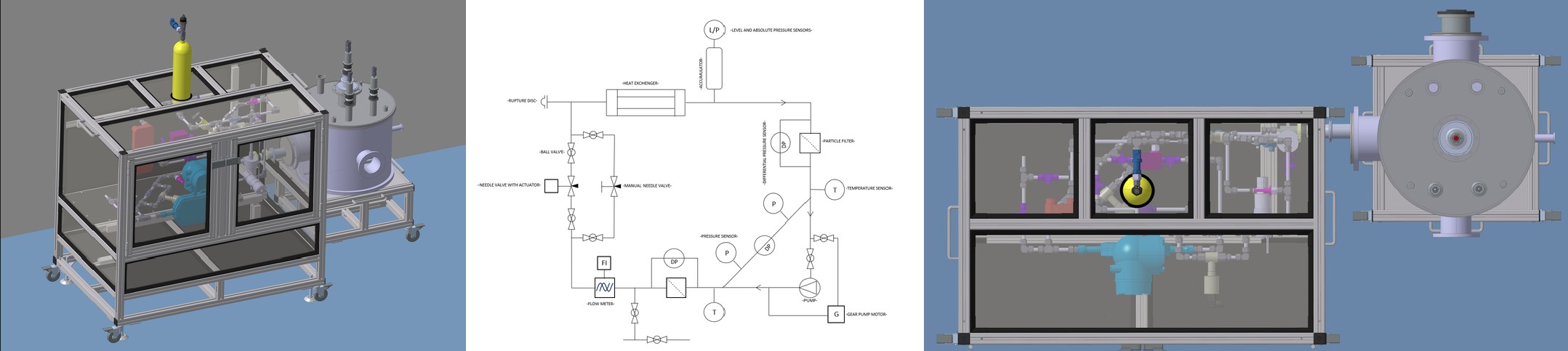

AMMONIA PUMP TEST BENCH
The Ammonia Pumps Test Bench is designed for the functional and performance testing of Ammonia Pumps under controlled operating conditions. The facility supports Engineering Model validation and can be integrated with the Small Thermal Vacuum Chamber to enable combined thermal vacuum and hydraulic performance testing for small and medium-sized space equipment and components.The Ammonia Pumps Test Bench is currently under development and more information will be available starting from: 2027.
